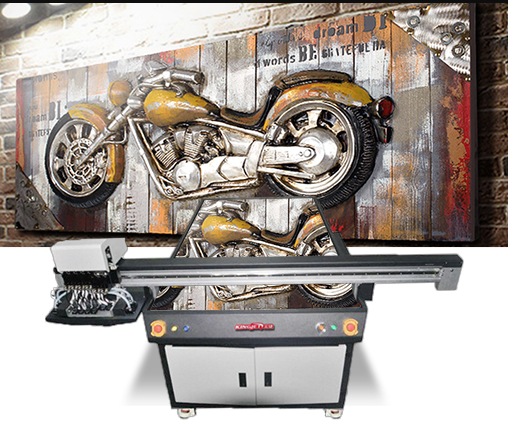

KINGJET KJ-1016UV Flatbed Printer (Ricoh GH2220)
In stock
$7,041.26
$7,041.26
Select Colors
Highlight
- HSN / HTS / ECCN Code: 8443
- Country of Origin: China
Specifications
| Model | KINGJET KJ-1016UV Flatbed Printer |
|---|---|
| Color | C M Y K W or C M Y K Lc Lm |
| Printhead | RICOH Gh2220 3.5PL (Piezoelectric Printhead) |
| Top Resolution | 600DPI, 900DPI, 1200DPI, 1800DPI, 2400DPI |
| Media | Wood panel, Aluminum panel, Door plank, Paperboard,PVC expansion sheet, Ceiling panel, Glass, Ceramics, Acrylic, PVC, etc. |
| Printing Speed | GH2220-4H 6 pass 12m²/h GH2220-6H 6 pass 16m²/h 8 pass 9m²/h 8 pass 12m²/h 12 pass 6m²/h 12 pass 9m²/h |
| Size of Material | Maximum Printing Area：Panel:1.0m（width）x 1.6m（depth） |
| Grey Scale | 3 Grey Scale |
| Thickness of Material | Panel：≤ 70mm |
| Weight of Material | Panel：≤ 45 kg/m2 |
| Image format | Tiff,JPG,Postscript3,EPS,PDF,AI etc. |
| Ink | Environmental protective UV ink |
| Power Supply | AC,50HZ/60HZ , 220v（±10%）＞15A ;2.5kw(exclusive of fan) |
| Printing software | Photoprint/Maintop |
| Optional | Air Compressor |
| Net & Gross | 400kg/500kg |
| Package dimensions (W x D x H) | 2.3x2.2x1.2m |
| Operation environment | Temperature: 15-30℃(59-86℉) Humidity: 40-80% RH (non-condensing) Operating Noise ≤80dB |
| Safety Certification | CE Certification/SGS |
Seller Details
KINGJET (SKYCUT)
Online Seller
Employee Count
Established In
Jul 2025
GST No.
07AESPG4582K2ZR
Address
3034 1st Floor Gali No- 2 Chuna Mandi Paharganj Near By Hari Masjid
Business Type
Online Seller
Product Overview
The KINGJET KJ-1016UV is engineered to fill the gap between light-duty and expensive, high-end industrial machines, offering superior Cost-Per-Print (CPP) value. Its 100cm x 160cm bed size is ideal for bulk production of mid-to-large rigid panels (wood, acrylic, glass). Powered by 5 to 8 Ricoh GH2220 industrial printheads, it utilizes 3.5pl variable dot printing and greyscale technology for high-resolution images and smooth output. This printer includes crucial industrial features like a Negative Pressure Ink Supply System, White Ink Stirring, Automatic Height Detection, and an integrated Vacuum Bed to ensure 24/7 reliability and consistent quality.
Company Details
We deals in cutting plotter and mobile skin cutter and many electronics item.
